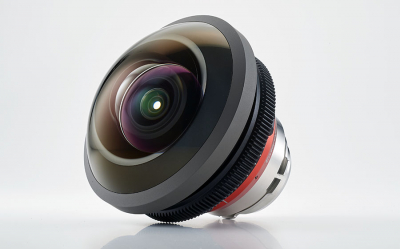

Entaniya HAL 220 LF PL

Entaniya HAL 220 LF

Overview

The HAL 220 PL and LF lenses are the best quality large format ultra-wide angle fisheye lenses available today. They feature a fully adjustable iris and a series of interchangeable spacer rings which slightly adjust the lens focal length enabling the image circle to optimally cover a very wide range of different sensors. The HAL 220 PL is currently our most popular lens being extensively used with RED cameras. The NEW HAL 220 LF lens is designed for even larger camera sensors such as the ARRI LF.

Specifications

Focal length - 1.14 - 8.03 (adjusted by spacer rings)
Spacer focal lengths - 6.14,6.20,6.40,6.51,6.63,6.74,6.87,6.99,7.12,7.26,7.40,7.70, & 8.03mm
Field Of View - 220 degrees diagonal
Image Circle Diameter - 180degrees = 19~25mm, 220 degrees = 22.6~29.8mm
11 Blade Aperture - T2.9~T22
Covers Sony Venice 2 & Red Monstro 8K sensors
Adjustment - manual focus, adjustable iris (manual or gear driven)
Lens elements - 17 in 12 groups
Lens mount - PL
Weight - 2.5kgs
Dimension - 102mm diameter
