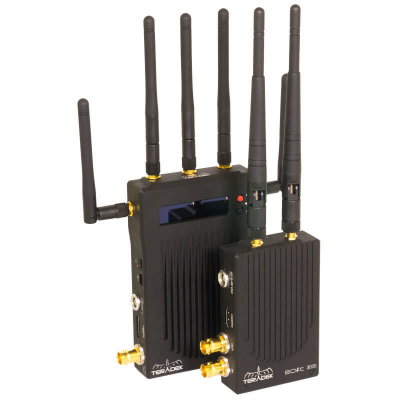

Teradek Bolt 3000
Transmit uncompresses 1080p 3g-SDI or HDMI video over 3000ft line of sight. The transmitter can be paired with up to four additional recievers (not included).
Transmitting across the 5 GHz frequency range, the pair utilizes Dynamic Frequency Selection (DFS) to find a clean signal between the transmitter and receiver. This is desirable when working in areas with crowded frequencies. Both transmitter and receiver are equipped with HDMI and SDI ports, which allow for cross conversion from HDMI to SDI and SDI to HDMI during transmission. The transmitter also features a loop-through SDI output. The USB GRAB engine streams the uncompressed video straight out of the receiver and into a personal computer for immediate recording.
The Bolt 3000 transmitter and receiver pair can transmit 1080p60 video up to 3000' line-of-sight with less than 1 ms of latency when not converting video formats.
Cross Conversion
The transmitter and receiver can cross convert your video signal during transmission.
Durability
The hardened aluminum chassis is designed to withstand the rigors of production, and features 1/4"-20 threaded mounting holes.
USB Grab Engine
The built-in USB port on the receiver enables direct connection to a computer, so you can capture video directly from the receiver into your computer over USB 3.0. With this video available, rough edits can be made even before the footage is offloaded from the camera.
OLED Info Screen
A built-in OLED information screen is built into the receiver. This enables rapid setup and confirmation of your settings.
3D LUT Support
Utilizing the OLED screen, you can apply 3D LUTs with the press of a button. Upload your own LUTs using the free Bolt Manager software, or select from several built-in presets using Bolt's OSD.
20 MHz and 40 MHz Channels
You can select to transmit in 20 or 40 MHz channels. However, please note that while 20 MHz channels allow you to operate more wireless systems at once in a single location and offer a more robust wireless link in challenging RF conditions, they do not support audio transmission, as well as interlaced, PsF, and 1080p 60/50 frame rates. The 40 MHz channels support audio, interlaced, PsF, and 1080p 60/50.
Timecode and Metadata Support
All 3G-SDI Bolt models support metadata, timecode, and start/stop flags from many camera manufacturers, including RED, ARRI, Canon, Sony, and Panasonic.
Dynamic and Manual Frequency Selection
You can select either dynamic or manual frequency.
