Eclipse XL 3D

Eclipse 3D.jpg

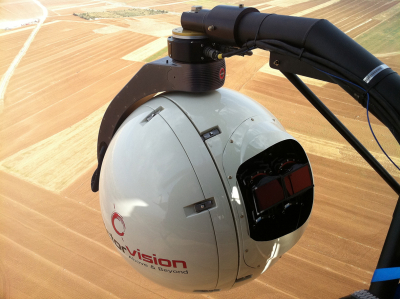

The Eclipse 3D is a clever adaptation of the award winning Eclipse platform. It incorporates two camera's (Red or Arri mini for example) mounted side by side with matched zoom lenses at an interoccular of approximately 6"

Key Features

  • Unsurpassed stability
  • Unsurpassed reliability
  • Unmatched steering precision & response
  • Absolute level horizon
  • Vehicle slave mode
  • Manual roll steering capability
  • GPS targeting and steering
  • 90° Look down steering
  • VFX Data logging of Gimbal and camera telemetry
  • Widest choice of camera and lens combinations including 65mm Imax and 35mm film both with 1000’ film loads

General Information

  • Platform Weight: 90-125kgs (dependant on payload)
  • Maximum installation weight: 250kgs approximately
  • Shipping Details: 750kgs in 18 cases (dependant of configuration)

Included with the system

  • Video Assist includes
    • Operator’s monitor with waveform & vectorscope displays (left or right eye)
    • Director’s monitor (left or right eye)
    • Pilot’s monitor (left or right eye)
    • Mini DV Clamshell recorder (left or right eye)
  • Portable 1k Generator (cannot be shipped)
  • Unit box
  • 138mm & 4.5” round filter sets
    • 85 & 85 combination to ND 1.2
    • Straight ND’s to 1.2
    • Polar

Optional Equipment

  • AS355/355 aviation approved helicopter side & or nose mount brackets
  • Microwave downlink (HD or SD available) of either the left or right eye.

Contact​ one of our team for more information
